Hot Dip Galvanized Buried Pipeline Reinforced Welded Mesh
Welded Galvanized Wire Pipeline Reinforced Mesh Description:
Pipeline reinforced mesh (also known as concrete weight coating mesh) is a specially welded steel mesh designed for reinforcing concrete coatings on offshore, subsea, underground and marine pipelines. Its corrugated structure provides excellent bonding with concrete, effectively preventing cracking, improving structural integrity and extending the service life of pipeline systems.
This welded wire mesh is made of low carbon steel with a galvanized surface finish, available in either cold-galvanized or hot-dip galvanized options, and complies with ASTM standards. Its stable structure and superior corrosion resistance effectively prevent damage to concrete weight-coated pipelines during and after installation.
Welded Galvanized Wire Pipeline reinforced Mesh Specifications:
| Product Name |
Welded Galvanized Wire Pipeline Reinforced mesh |
| Product Material |
hot dipped galvanized |
| Four Types |
RFSM-N,RFSM-T,RFSM-L,RFSM-W |
| Wire diameter |
1.6mm/2.0mm/2.2mm/2.4mm/2.85mm |
| Hole size |
25.4mmx67mm |
| Hardness range |
485N/mm2-650N/mm2 |
| Width |
190.5mm or custom |
| Length |
140mm,280mm or custom |
| Roll Diameter |
700mm-1000mm |
| Surface |
Smooth, bright and clean |
| Lifespan |
Above 20 years |
| Price |
Negotiate
|

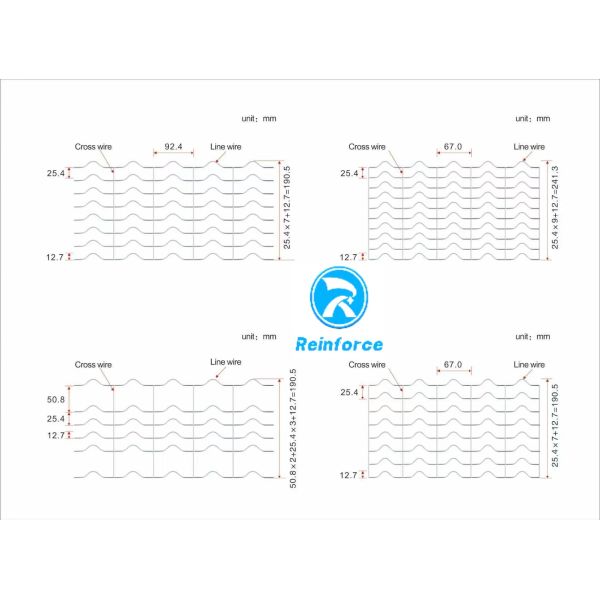

Normal Export Specifications Kinds:
| Wire Diameter |
Hole Size |
Roll Width |
Roll Length |
| 2.0mm/2.0mm |
25.4mmx67mm |
190.5mm |
140m and 280m |
| 2.0mm/2.2mm |
25.4mmx67mm |
190.5mm |
140m and 280m |
| 2.0mm/2.4mm |
25.4mmx67mm |
190.5mm |
140m and 280m |
| 2.0mm/2.7mm |
25.4mmx67mm |
190.5mm |
140m and 280m |
| Products can be customized according to customers’ requirements. |
Pipeline reinforced Mesh Features:
- Exceptional durability in harsh subsea environments.
- High-quality welded galvanized wire for maximum strength.
- Flexible, easy-to-install design for cost savings.
- Fully customizable specifications to meet your project needs.
Protect your critical infrastructure from the elements. Contact us today for a custom quote and secure your supply of industry-standard reinforced mesh.
Pipeline Reinforced Mesh Applications:
This mesh is first hot-dip galvanized before processing and is mainly used for cement counterweight layers in submarine oil and gas pipelines. Wrapped on the oil pipeline, it plays a role in anti-collision and anti-corrosion protection. It is the preferred product for protecting oil pipelines.
Our company profile:
Our company has 6 sets of the world's most advanced complete wire mesh welding production lines, with an annual production capacity of more than 5 million square meters, and is equipped with a complete set of testing equipment such as tensile testing machines, bending testing machines, and galvanized testing ensure that the products meet domestic and international relevant quality and standard requirements.
Our company has passed the ISO 9001 quality management system, ISO 14001 environmental management system and ISO 45001 occupational health and safety management system three international standard certifications, indicating that the company's comprehensive management capabilities in the fields of quality, environment and occupational health and safety have reached international standards.
